Description

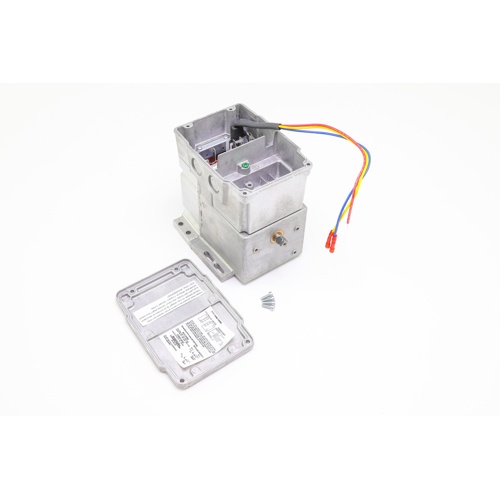

The Honeywell M9194E1000 is a heavy-duty Proportional Modutrol IV Motor engineered for precise, reliable damper and valve control in commercial HVAC systems. Designed to accept a 135 Ohm control signal at 24Vac, this non-spring-return actuator delivers consistent, proportional positioning across a wide range of building automation and air-handling applications.
Key Features
- Proportional control with 135 Ohm input signal for accurate, stepless positioning
- 24Vac operating voltage for compatibility with standard commercial control systems
- Non-spring-return design — motor holds last position on power loss
- High-torque output of 300 lb-in for demanding damper and valve applications
- 120–240 second nominal timing range for flexible system tuning
- 90–160 degree stroke range with 90 degree factory stroke setting
- Quick-connect terminals for fast, reliable field wiring
- Foot-mounted configuration for secure, stable installation
- Dual-end shaft for versatile coupling options
Technical Specifications
- Model: M9194E1000
- Series: Modutrol IV
- Control Signal: 135 Ohm proportional
- Supply Voltage: 24Vac
- Torque Output: 300 lb-in
- Nominal Timing: 120–240 seconds
- Stroke Range: 90–160 degrees
- Factory Stroke Setting: 90 degrees
- Return Type: Non-spring return
- Terminals: Quick-connect
- Mounting: Foot mounted
- Shaft: Dual end
Applications
- Commercial air handling unit (AHU) damper control
- Modulating valve actuation in HVAC systems
- Building automation and energy management systems
- Variable air volume (VAV) and mixed-air control
- Industrial process control requiring proportional positioning
The M9194E1000’s robust 300 lb-in torque rating makes it well suited for large dampers and high-resistance valves, while the wide 90–160 degree stroke range and adjustable timing provide the flexibility needed for complex commercial installations. Quick-connect terminals and foot-mount design simplify installation and reduce commissioning time.
