Description
Overview

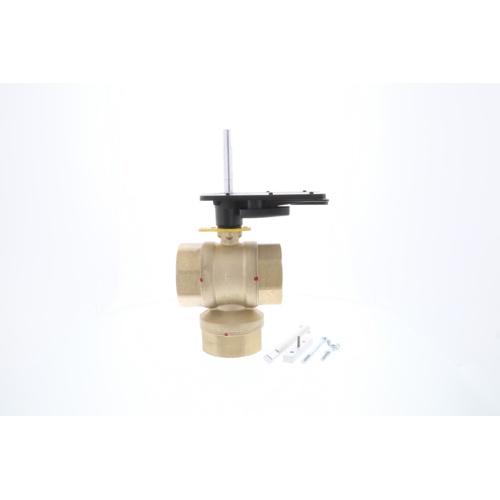

The Honeywell VBN3GRPX0000 is a commercial-grade 3-way ball valve engineered for precise flow control in chilled water and hot water hydronic systems. With a 2-1/2″ NPT connection and a high-capacity 74 Cv flow coefficient, this valve delivers reliable performance in demanding HVAC applications. The valve features a brass body with a nickel-chrome plated brass ball and stem for enhanced corrosion resistance and long service life.
Flow Characteristics
- Equal Percentage flow characteristic — Port A to AB
- Linear flow characteristic — Port B to AB
- 74 Cv flow coefficient for high-capacity system requirements
- 3-way configuration for mixing or diverting applications
Construction & Materials
- Brass body construction for durability and corrosion resistance
- Nickel-chrome plated brass ball and stem for extended service life
- 2-1/2″ NPT end connections for standard pipe compatibility
- Direct coupled actuator base for easy actuator mounting
Application & Ratings
- Suitable for chilled water and hot water hydronic systems
- Maximum operating temperature: 250°F
- Compatible with direct coupled actuators (actuator sold separately)
- Ideal for commercial HVAC air handling units, fan coils, and hydronic distribution systems
Key Benefits
- Dual flow characteristics (equal percentage and linear) provide versatile system control
- High Cv rating supports large-volume flow applications
- Nickel-chrome plating resists scale and corrosion for reduced maintenance
- Direct coupled actuator base simplifies installation and integration with building automation systems
