Description

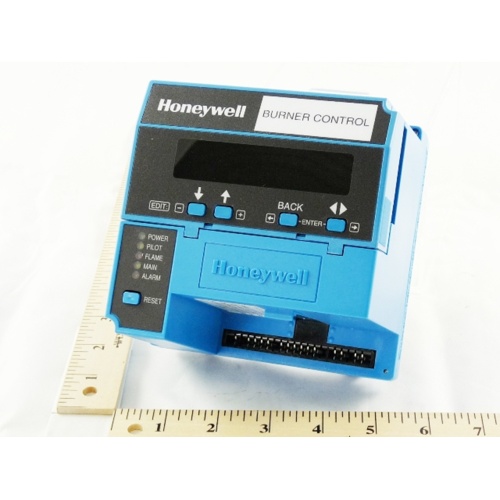

The Honeywell RM7838A1014 is a robust manual start industrial primary control designed for demanding commercial and industrial burner applications. Engineered for reliability and precision, this control delivers comprehensive flame safeguard protection with an integrated purge cycle, ensuring safe burner startup sequences in accordance with industry standards.
Key Features
- Manual start operation with integrated purge cycle for safe, controlled burner ignition sequences
- 120Vac operating voltage for compatibility with standard industrial power supplies
- Intermittent main flame establishing period for flexible burner management
- Selectable pilot flame establishing period — 4 second or 10 second options to suit application requirements
- Running interlocks support for enhanced operational safety monitoring
- Intermittent pilot ignition mode for energy-efficient burner control
- Wide ambient temperature operating range: -40°F to 140°F (-40°C to 60°C), suitable for harsh environments
Application
The RM7838A1014 is ideal for industrial burner systems requiring a dependable primary safety control with purge capability. Its manual start design gives operators direct control over the ignition sequence, while running interlocks provide continuous system safety monitoring throughout burner operation. The selectable pilot flame establishing period (4 or 10 seconds) allows the control to be configured for a wide range of pilot burner types and fuel systems.
Specifications
- SKU / Part Number: RM7838A1014
- Brand: Honeywell
- Supply Voltage: 120Vac
- Start Mode: Manual Start with Purge
- Main Flame Establishing Period: Intermittent
- Pilot Flame Establishing Period: 4 Second or 10 Second (selectable)
- Pilot Type: Intermittent Pilot
- Running Interlocks: Yes
- Ambient Temperature Range: -40°F to 140°F (-40°C to 60°C)
