Description

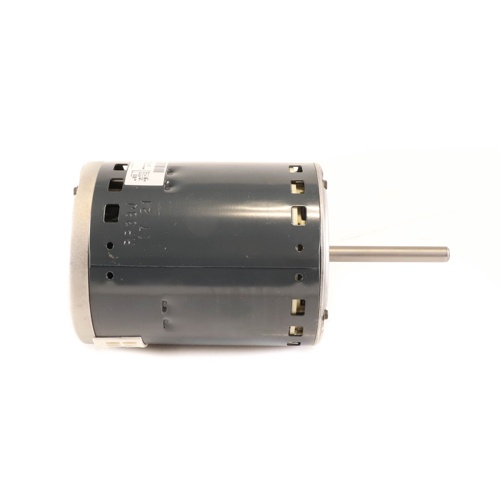

The International Comfort Products 1183857 is a heavy-duty variable-speed blower motor engineered for reliable, efficient airflow in residential and light commercial HVAC systems. Designed as a direct OEM replacement, this motor delivers consistent performance and is built to exacting ICP specifications.
Electrical Specifications
- Voltage: 208–230V AC
- Phase: Single Phase
- Horsepower: 1 HP
- Amperage: 7.4 Amps
- Speed Type: Variable
Mechanical Specifications
- NEMA Frame Size: 48
- Bearing Type: Ball Bearing
- Mounting Style: Band Mount
- Shaft Size: 1/2″ diameter x 4″ length
- Rotation: Counter-Clockwise (CCW)
Key Features & Benefits
- Variable-speed operation for precise airflow control and enhanced system efficiency
- Ball bearing construction for long service life and reduced maintenance
- Band mount design simplifies installation and replacement
- OEM-grade quality ensures compatibility with International Comfort Products equipment
- Standard 48 NEMA frame for broad application compatibility
- CCW rotation clearly specified to ensure correct airflow direction
Application
This blower motor is ideal for use in ICP furnaces, air handlers, and fan coil units requiring a 1 HP, variable-speed motor. The 208–230V single-phase rating makes it suitable for standard residential and light commercial electrical systems. Always verify the original motor’s specifications — including voltage, horsepower, rotation, and shaft dimensions — before installation to ensure a proper fit.
