Description
Overview

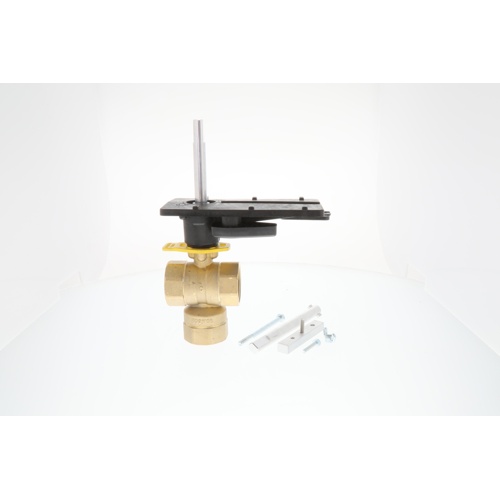

The Honeywell VBN3DLPX0000 is a heavy-duty 3-way ball valve engineered for precise flow control in commercial and industrial hydronic systems. Designed for use with chilled or hot water applications up to 250°F, this valve delivers reliable, long-lasting performance in demanding HVAC environments. Its direct coupled actuator base simplifies installation and integration with compatible Honeywell actuators.
Flow Characteristics
This valve features a dual-flow characteristic design that provides optimal control across both flow paths:
- Equal Percentage flow characteristic — Port A to AB
- Linear flow characteristic — Port B to AB
- Flow coefficient (Cv): 19.40
Construction & Materials
- Brass valve body for corrosion resistance and durability
- Nickel-chrome plated brass ball and stem for extended service life
- 3-way configuration for mixing or diverting applications
- 1-1/4″ NPT end connections for standard pipe compatibility
Application
- Chilled water systems
- Hot water heating systems
- Maximum fluid temperature: 250°F
- Compatible with direct coupled actuators via integrated actuator base
Key Features
- 1-1/4″ NPT connections
- 19.40 Cv flow coefficient
- 3-way ball valve design
- Equal percentage flow — Port A to AB
- Linear flow — Port B to AB
- Brass body with nickel-chrome plated brass ball and stem
- Direct coupled actuator base included
- Rated for chilled or hot water service up to 250°F maximum
