Overview

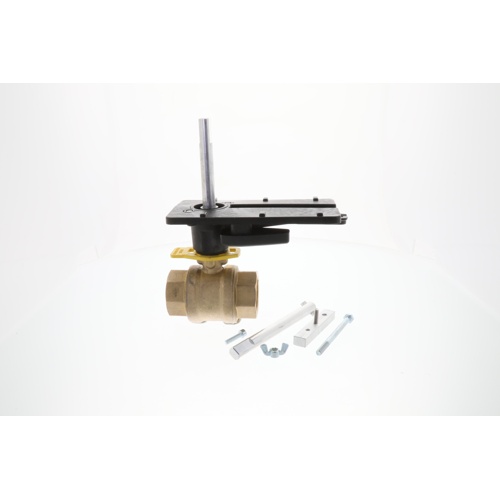

The Honeywell VBN2DSSX0000 is a heavy-duty 2-way ball valve engineered for reliable flow control in commercial and industrial hydronic systems. Featuring a robust brass body paired with a stainless steel ball and stem, this valve delivers long-lasting corrosion resistance and dependable performance in demanding chilled water and hot water applications.
Key Features
- 1-1/4″ NPT end connections for straightforward pipe installation
- 2-way, equal percentage flow characteristic for precise modulating control
- High 102 Cv flow coefficient for low pressure drop across a wide range of flow rates
- Brass body construction for durability and corrosion resistance
- Stainless steel ball and stem for extended service life and reliable sealing
- Direct coupled actuator base — compatible with Honeywell actuators for easy assembly
- Rated for chilled water and hot water service up to 250°F maximum
- Supports fluid mixtures up to 50% glycol solution for freeze-protection applications
Application
The VBN2DSSX0000 is ideal for use in HVAC hydronic systems including chilled water cooling coils, hot water heating coils, fan coil units, and air handling units. Its equal percentage flow characteristic makes it well-suited for modulating control applications where precise temperature regulation is required. Glycol compatibility up to 50% makes it a versatile choice for systems requiring freeze protection.
Specifications
- SKU: VBN2DSSX0000
- Brand: Honeywell
- Valve Type: Ball Valve, 2-Way
- Pipe Size: 1-1/4″
- Connection Type: NPT (National Pipe Thread)
- Flow Coefficient (Cv): 102
- Flow Characteristic: Equal Percentage
- Body Material: Brass
- Ball and Stem Material: Stainless Steel
- Maximum Temperature: 250°F
- Fluid Compatibility: Chilled Water, Hot Water, Up to 50% Glycol Solution
- Actuator Interface: Direct Coupled Actuator Base
