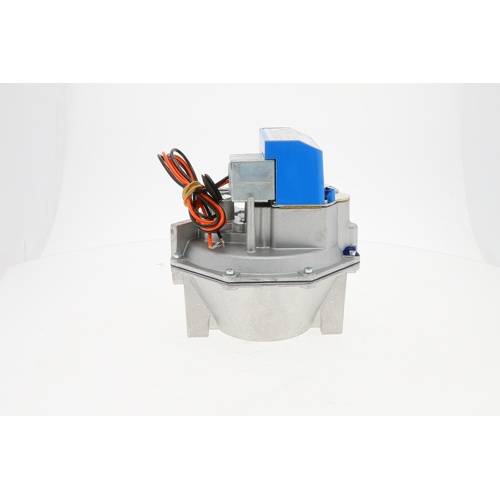

Honeywell V8943N1013 Single Stage Pressure Regulating Valve Overview
The Honeywell V8943N1013 is a single stage pressure regulating valve engineered for natural gas applications requiring precise, reliable pressure control. With a 1″ connection size and 24 VAC actuation, this valve integrates seamlessly into commercial and residential gas-fired heating systems, delivering consistent downstream pressure and fast, controlled response times.
Key Features
- Single stage pressure regulation for natural gas service
- 1″ valve connection size for versatile installation
- 24 VAC operating voltage for compatibility with standard control systems
- High fire regulator setpoints adjustable from 3″ to 4.5″ water column
- Factory set at 3.5″ water column for immediate out-of-box use
- Flow capacity rated from 300 to 1,000 CFH to handle a wide range of burner loads
- Maximum valve opening time of 6 seconds for controlled gas admission
- Maximum valve closing time of 2 seconds for rapid, safe shutoff
Technical Specifications
- SKU / Model: V8943N1013
- Brand: Honeywell
- Valve Type: Single Stage Pressure Regulating
- Gas Type: Natural Gas
- Connection Size: 1″
- Operating Voltage: 24 VAC
- High Fire Regulator Setpoint Range: 3″ – 4.5″ Water Column
- Factory Pressure Setting: 3.5″ Water Column
- Flow Capacity: 300 – 1,000 CFH
- Maximum Valve Opening Time: 6 Seconds
- Maximum Valve Closing Time: 2 Seconds
Application & Benefits
The V8943N1013 is ideally suited for use in commercial and light industrial gas-fired heating equipment, boilers, unit heaters, and furnaces where stable gas pressure regulation is critical to efficient combustion and system safety. The factory-set 3.5″ W.C. outlet pressure minimizes field adjustment time, while the broad 300–1,000 CFH capacity range accommodates diverse burner configurations. The fast 2-second closing response supports system safety requirements, and the 6-second opening time allows for smooth, controlled gas flow on startup.
