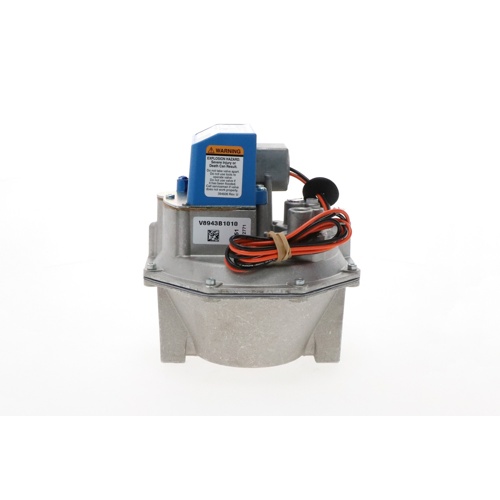

Honeywell V8943B1010 Single Stage Pressure Regulating Gas Valve Overview
The Honeywell V8943B1010 is a single stage pressure regulating gas valve engineered for reliable natural gas flow control in commercial and residential heating applications. Operating on a 24VAC control circuit and featuring a 1″ pipe connection, this valve delivers precise pressure regulation and consistent performance across a wide range of system demands.
Key Specifications
- Valve Type: Single Stage Pressure Regulating Valve
- Control Voltage: 24VAC
- Pipe Connection Size: 1″
- Gas Type: Natural Gas
- High Fire Regulator Setpoint Range: 3″ – 4.5″ Water Column (W.C.)
- Factory Pressure Setting: 3.5″ Water Column (W.C.)
- Flow Capacity: 300 – 1,000 CFH (Cubic Feet per Hour)
- Valve Opening Time: 3 – 25 Seconds (adjustable)
- Valve Closing Time: 2 Seconds Maximum
Features & Benefits
- Single stage design simplifies installation and reduces system complexity
- Factory-set at 3.5″ W.C. for immediate out-of-the-box deployment
- Adjustable high fire regulator setpoints (3″ – 4.5″ W.C.) for flexible system tuning
- Wide capacity range of 300–1,000 CFH accommodates diverse burner applications
- Adjustable valve opening time (3–25 seconds) allows controlled, safe gas admission
- Fast 2-second maximum closing time ensures rapid shutoff for system safety
- 24VAC operation integrates seamlessly with standard HVAC control circuits
- 1″ connection size suits a broad range of commercial and residential gas piping systems
Applications
- Commercial and residential gas-fired heating equipment
- Natural gas burner systems requiring single stage pressure regulation
- Boilers, furnaces, and unit heaters with 1″ gas train connections
- Systems requiring precise inlet pressure regulation and controlled valve timing
Why Choose the Honeywell V8943B1010?
Honeywell’s V8943B1010 combines proven pressure regulation technology with straightforward installation and field-adjustable settings. The factory-preset 3.5″ W.C. outlet pressure reduces commissioning time, while the broad 300–1,000 CFH capacity range and adjustable opening time make it a versatile solution for a wide variety of natural gas heating systems. Trust Honeywell’s engineering heritage for dependable gas valve performance in demanding HVAC environments.
