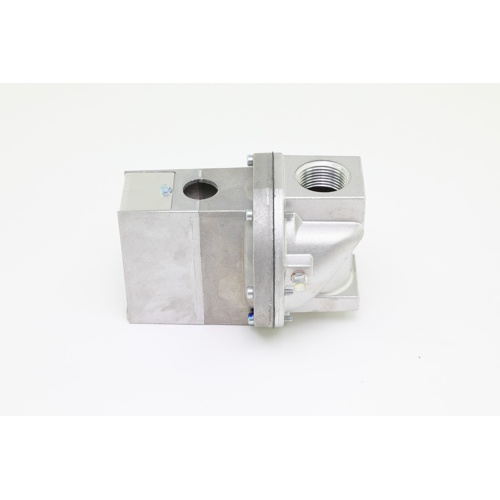

Honeywell V48A2334 Diaphragm Gas Valve Overview
The Honeywell V48A2334 is a heavy-duty diaphragm gas valve engineered for reliable gas flow control in commercial and industrial heating applications. With a 1-inch connection size and a generous 1,021 CFH capacity, this valve is well-suited for high-demand burner systems that require precise, dependable shutoff and flow regulation. Its 120VAC operating voltage makes it compatible with standard commercial control circuits, and the straight-through flow path minimizes pressure drop across the valve body.
Key Specifications
- Valve Type: Diaphragm Gas Valve
- Connection Size: 1 inch
- Flow Capacity: 1,021 CFH
- Maximum Inlet Pressure: 1 PSI
- Operating Voltage: 120VAC
- Flow Configuration: Straight Through
- Lead Wires: 6 inches
- Pilot Tapping: 1/8″-27 NPT
- Bleed Tapping: 1/8″-27 NPT
- Maximum Valve Opening Time: 5 seconds
- Maximum Valve Closing Time: 2 seconds
- Mounting Orientation: Upright or Horizontal
Design & Installation Features
- Straight-through flow path for reduced pressure drop and simplified piping
- Dual 1/8″-27 NPT tappings for pilot and bleed connections, offering flexible system integration
- 6-inch leadwires provide convenient wiring access in tight installations
- Upright and horizontal mounting compatibility ensures versatile placement in a variety of equipment configurations
- Fast 5-second maximum opening and 2-second maximum closing times support responsive burner control
Applications
The V48A2334 is designed for use in commercial and industrial gas-fired heating equipment, including boilers, unit heaters, and process burners. Its robust diaphragm construction and proven Honeywell engineering make it a trusted choice for OEM and replacement applications where reliable gas control is critical.
