Description

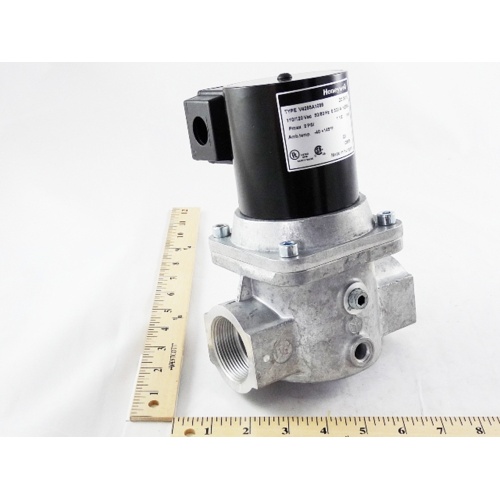

Honeywell V4295A1056 Solenoid Gas Valve Overview
The Honeywell V4295A1056 is a heavy-duty solenoid gas valve engineered for reliable on/off control of gas flow in commercial and industrial heating applications. With a 1-1/2″ valve body, 120VAC coil voltage, and a generous 2,190 CFH flow capacity, this valve is well-suited for high-demand burner systems and gas-fired equipment requiring dependable, fast-acting shutoff.
Key Specifications
- Valve Type: Solenoid Gas Valve
- SKU / Model: V4295A1056
- Coil Voltage: 120VAC
- Valve Body Size: 1-1/2″
- Flow Capacity: 2,190 CFH
- Maximum Inlet Pressure Rating: 2 PSI
- Flow Pattern: Straight Through, Non-Offset
- Terminal Type: Screw Terminals
- Pressure Tapping: 1/4″ NPT Inlet and Outlet
- Mounting Orientation: Vertical to 90 Degrees
Compatible Gas Types
- Air
- Natural Gas
- Manufactured Gas
- Mixed Gas
- LP (Liquefied Petroleum) Gas
Features & Benefits
- Straight-through, non-offset body design minimizes pressure drop and simplifies piping
- 1/4″ NPT pressure tapping ports on both inlet and outlet for easy pressure testing and system diagnostics
- Screw terminal connections provide secure, tool-friendly wiring access
- Flexible mounting orientation — vertical to 90 degrees — accommodates a wide range of installation configurations
- Multi-gas compatibility makes this valve suitable for diverse fuel types without additional hardware
- Robust Honeywell construction ensures long service life in demanding commercial environments
Typical Applications
- Commercial and industrial gas burner systems
- Boilers and process heating equipment
- Gas-fired unit heaters and furnaces
- OEM equipment requiring high-capacity solenoid gas shutoff
