Description

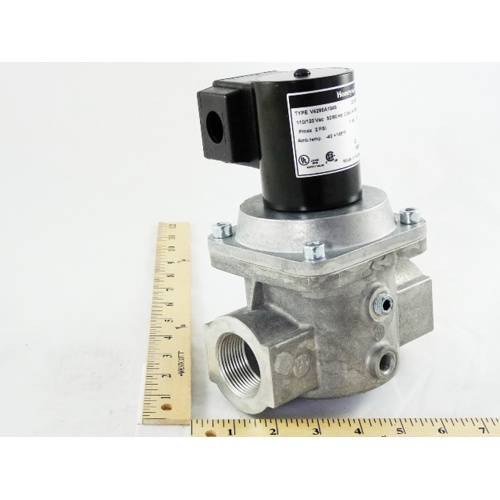

The Honeywell V4295A1049 is a heavy-duty solenoid gas valve engineered for reliable on/off gas flow control across a wide range of commercial and industrial heating applications. With a 120VAC coil, a 1-1/4″ body size, and a robust 1,450 CFH flow capacity, this valve delivers the performance and versatility that HVAC professionals demand.
Key Features
- 120VAC operating voltage for compatibility with standard commercial control circuits
- 1-1/4″ valve body for high-flow installations
- 1,450 CFH flow capacity to handle demanding gas supply requirements
- 2 PSI maximum pressure rating
- Straight-through, non-offset body design for simplified installation and minimal pressure drop
- Screw terminals for fast, secure field wiring
- 1/4″ NPT inlet and outlet pressure tapping ports for easy pressure monitoring
- Mounting flexibility: vertical to 90-degree orientation
Gas Compatibility
- Natural Gas
- Manufactured Gas
- Mixed Gas
- LP (Liquefied Petroleum) Gas
- Air
Specifications
- SKU / Model: V4295A1049
- Brand: Honeywell
- Voltage: 120VAC
- Valve Body Size: 1-1/4″
- Flow Capacity: 1,450 CFH
- Pressure Rating: 2 PSI
- Body Configuration: Straight Through, Non Offset
- Terminal Type: Screw Terminals
- Pressure Tapping: 1/4″ NPT Inlet and Outlet
- Mounting Orientation: Vertical to 90 Degrees
Applications
The V4295A1049 is ideal for use in commercial burners, boilers, furnaces, and other gas-fired heating equipment where a dependable, high-capacity solenoid shutoff valve is required. Its multi-gas compatibility and flexible mounting orientation make it a versatile choice for a broad range of system configurations.
