Description

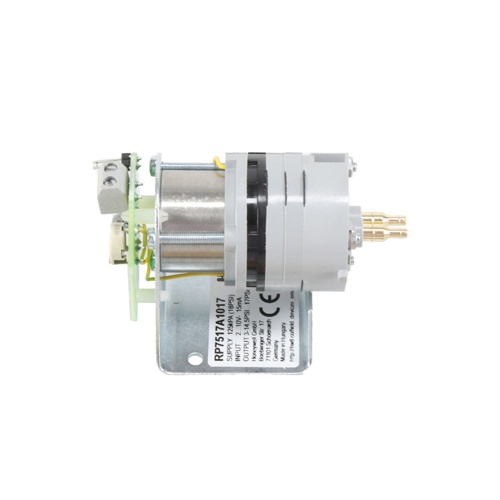

The Honeywell RP7517A1017 is a precision Electronic-Pneumatic (E/P) Transducer engineered for commercial and industrial HVAC building automation systems. It seamlessly bridges electronic controllers and pneumatic actuators by converting a proportional electric output signal into a direct-acting proportional pneumatic signal — delivering accurate, reliable control over VAV boxes, pneumatic damper actuators, and other pneumatically operated devices.
How It Works
The RP7517A1017 accepts a 2–10 Vdc proportional input signal from an electronic controller and converts it into a corresponding direct-acting pneumatic output. The voltage input simultaneously powers the transducer, eliminating the need for a separate power supply and simplifying installation.
Key Features
- Converts proportional 2–10 Vdc electric output signal to a direct-acting proportional pneumatic signal
- 2–10 Vdc input signal — voltage also serves as the power source
- Direct-acting pneumatic output for straightforward actuator control
- Screw terminals accommodate 14 or 22 AWG wire for flexible wiring options
- Compact design suited for panel or field mounting in commercial HVAC applications
- Compatible with building automation systems and DDC controllers with analog voltage outputs
Typical Applications
- VAV box pneumatic actuator control
- Pneumatic damper actuator positioning
- Pneumatic valve control in air handling and hydronic systems
- Retrofit and integration of electronic DDC systems with legacy pneumatic field devices
Product Specifications
- Brand: Honeywell
- Model / SKU: RP7517A1017
- Input Signal: 2–10 Vdc (proportional)
- Power Source: Voltage input signal (no separate power supply required)
- Output Type: Direct-acting proportional pneumatic signal
- Wire Termination: Screw terminals, 14 or 22 AWG wire
- Signal Type: Electronic-to-Pneumatic (E/P)
