Description

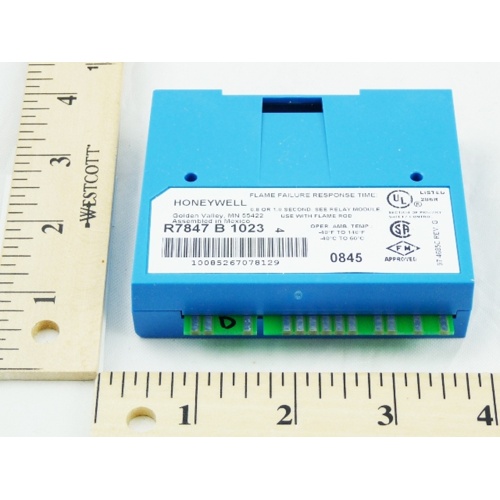

The Honeywell R7847B1023 is a plug-in Flame Signal Amplifier engineered for use with Honeywell’s 7800 Series Primary Safety Controls. Featuring Ampli-Check self-diagnostic technology, this green-coded amplifier continuously monitors and verifies flame signal integrity, providing an added layer of safety and reliability for commercial and industrial gas-fired burner applications.
Key Features
- Ampli-Check technology continuously verifies amplifier and flame signal performance
- Selectable flame failure response time: 0.8 second or 1 second for application flexibility
- Compatible with rectifying flame rod sensors: C7004, C7005, C7007, C7008, C7009, and Q179
- Designed for use with Honeywell 7800 Series Primary Safety Controls
- Color-coded green for easy identification and correct module selection
- Plug-in design simplifies installation and replacement
Compatible Flame Sensors
- C7004 Rectifying Flame Rod
- C7005 Rectifying Flame Rod
- C7007 Rectifying Flame Rod
- C7008 Rectifying Flame Rod
- C7009 Rectifying Flame Rod
- Q179 Rectifying Flame Rod
Application
The R7847B1023 is ideal for commercial and industrial gas burner systems where precise, reliable flame detection is critical. Its plug-in format makes it a straightforward drop-in replacement for existing 7800 Series burner control systems, minimizing downtime during service calls. The green color coding ensures technicians select the correct amplifier module every time, reducing the risk of installation errors.
Specifications
- SKU: R7847B1023
- Brand: Honeywell
- Flame Failure Response Time: 0.8 second or 1 second (selectable)
- Flame Sensor Type: Rectifying Flame Rod (gas applications)
- Compatible Controls: Honeywell 7800 Series Primary Safety Controls
- Module Color: Green
- Feature: Ampli-Check self-diagnostic monitoring
