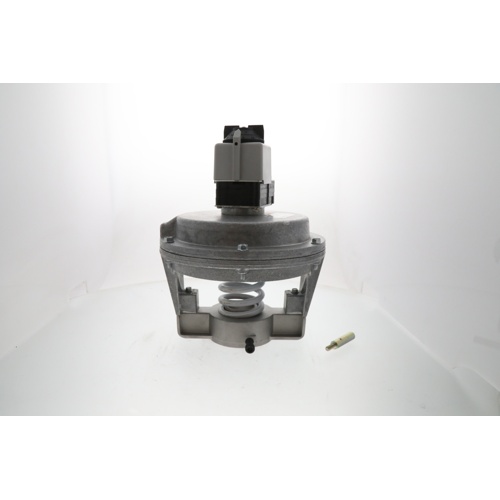

Honeywell MP953E1368 Pneumatic Coil Valve Actuator Overview
The Honeywell MP953E1368 is a direct-acting pneumatic coil valve actuator engineered for reliable proportional control of steam, hot water, and cold liquids in commercial and industrial HVAC systems. With a precisely calibrated 4–11 PSI spring range and a 3/4″ stroke, this actuator delivers accurate, responsive modulation to maintain optimal system performance and comfort.
Key Features
- Direct-acting pneumatic operation for dependable proportional control
- 4–11 PSI spring range for precise valve positioning across the full control range
- 3/4″ stroke length for compatibility with standard coil valve assemblies
- Spring return design ensures fail-safe valve positioning on loss of air signal
- Dual barbed fitting accommodates both 5/32″ and 1/4″ OD plastic pneumatic tubing
- Suitable for steam, hot water, and cold liquid HVAC applications
- Designed for use in commercial building automation and hydronic systems
Application
The MP953E1368 is ideal for use on two-way and three-way coil valves in air handling units, fan coil units, and hydronic terminal equipment. Its spring return functionality provides an added layer of safety by returning the valve to a predetermined position whenever pneumatic supply pressure is lost. The dual barbed fitting offers installation flexibility, accepting either 5/32″ or 1/4″ OD plastic tubing commonly found in pneumatic control systems.
Specifications
- Brand: Honeywell
- Model / SKU: MP953E1368
- Actuator Type: Pneumatic, Direct Acting
- Spring Range: 4–11 PSI
- Stroke: 3/4″
- Return Type: Spring Return
- Tubing Connection: Dual Barbed Fitting — 5/32″ or 1/4″ OD Plastic Tubing
- Control Type: Proportional
- Media Compatibility: Steam, Hot Water, Cold Liquids
- Application: HVAC Coil Valve Control
