Description

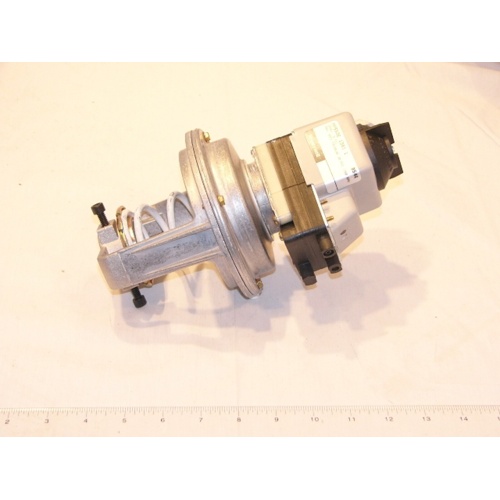

The Honeywell MP953E1301 is a direct-acting pneumatic coil valve actuator engineered for precise proportional control of steam, hot water, and cold liquid systems in commercial and industrial HVAC applications. With a factory-calibrated 4–11 PSI spring range and a 3/4″ stroke, this spring-return actuator delivers reliable, repeatable valve positioning in response to pneumatic control signals — making it a proven choice for air-handling units, fan coil systems, and hydronic distribution networks.
The MP953E1301 features a dual barbed fitting that accommodates both 5/32″ and 1/4″ OD plastic tubing, simplifying field installation and reducing the need for additional adapters. Its spring-return design ensures the valve returns to a fail-safe position upon loss of air pressure, providing an added layer of system protection.
Key Features
- Direct-acting pneumatic operation for proportional valve control
- 4–11 PSI spring range for precise modulating response
- 3/4″ stroke compatible with standard coil valve bodies
- Spring-return mechanism for fail-safe valve positioning on air loss
- Dual barbed fitting accepts 5/32″ or 1/4″ OD plastic tubing
- Suitable for steam, hot water, and cold liquid HVAC applications
Specifications
- Model: MP953E1301
- Brand: Honeywell
- Actuator Type: Pneumatic, Direct Acting
- Spring Range: 4–11 PSI
- Stroke: 3/4″
- Action: Spring Return
- Tubing Connection: Dual barbed fitting for 5/32″ or 1/4″ OD plastic tubing
- Media Compatibility: Steam, hot water, cold liquids
- Control Type: Proportional
- Application: Commercial/Industrial HVAC coil valve control
Applications
- Fan coil unit valve control
- Air handling unit heating and cooling coils
- Hydronic hot water and chilled water distribution systems
- Steam coil modulating control
- Building automation pneumatic control systems
