Description

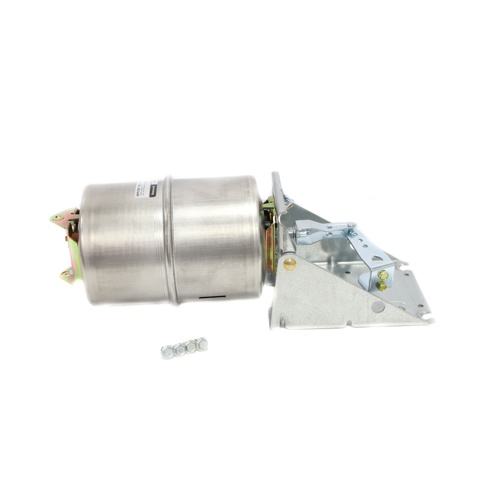

Honeywell MP918B1196 Pneumatic Damper Actuator Overview
The Honeywell MP918B1196 is a high-force, spring-return pneumatic damper actuator engineered for reliable damper control in commercial and industrial HVAC systems. With a robust 3½” stroke and a wide operating temperature range of -40°F to 158°F, this actuator performs dependably across demanding environments. Its spring-return design ensures fail-safe damper positioning upon loss of pneumatic signal, making it an essential component in building automation and air handling applications.
Key Features
- High actuator force for reliable damper operation under challenging conditions
- Spring-return design provides fail-safe positioning on loss of signal
- 3½” stroke for broad compatibility with commercial damper linkages
- 8–13 PSI spring range for precise pneumatic control response
- 29 PSI maximum operating pressure for safe system integration
- ¼” barbed fitting designed for OD plastic tubing connections
- Wide humidity tolerance: 5–95% RH (non-condensing)
- Extended temperature range: -40°F to 158°F (-40°C to 70°C)
Specifications
- Model: MP918B1196
- Actuator Type: Pneumatic, Spring Return
- Actuator Force: High
- Stroke: 3½”
- Spring Range: 8–13 PSI
- Maximum Operating Pressure: 29 PSI
- Tubing Connection: ¼” Barbed Fitting for OD Plastic Tubing
- Operating Humidity Range: 5–95% RH
- Operating Temperature Range: -40°F to 158°F (-40°C to 70°C)
Applications
- Commercial HVAC air handling units (AHUs)
- Pneumatic damper control in building automation systems
- Variable air volume (VAV) systems
- Economizer and outside air damper control
- Industrial ventilation and process air control
