Description

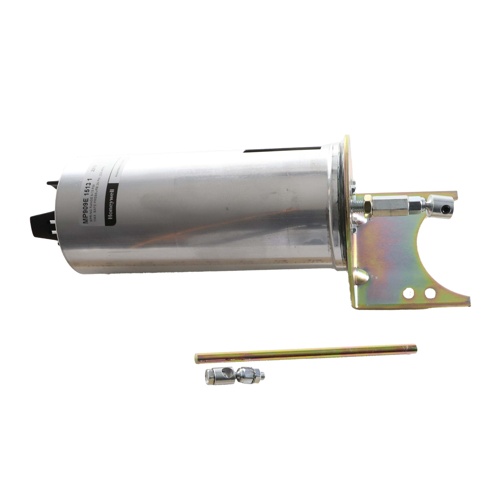

The Honeywell MP909E1513 is a medium-force, spring return pneumatic damper actuator engineered for reliable damper positioning in commercial HVAC and building automation systems. Designed for direct-acting pneumatic control, this actuator delivers consistent, repeatable performance across a wide range of damper applications.
Key Features
- Spring return operation ensures fail-safe damper positioning upon loss of air pressure
- Medium force output suitable for a broad range of commercial damper sizes
- 9–15 PSI control signal range for precise modulating or two-position control
- 4″ stroke provides ample travel for effective damper linkage actuation
- Dual barbed fitting accommodates both 5/32″ and 1/4″ O.D. pneumatic tubing for flexible installation
- Includes mounting bracket for external mounting configurations
- Ball joint and pushrod included for easy linkage connection and alignment
Product Specifications
- Brand: Honeywell
- SKU: MP909E1513
- Actuator Type: Pneumatic, Spring Return
- Force Rating: Medium Force
- Control Pressure Range: 9–15 PSI
- Stroke: 4″
- Tubing Compatibility: 5/32″ or 1/4″ O.D. (dual barbed fitting)
- Mounting: External mounting bracket included
- Accessories Included: Ball joint and pushrod
Applications
- Commercial HVAC damper control
- Building automation and pneumatic control systems
- Ventilation and air handling unit damper actuation
- Retrofit and new-construction pneumatic control installations
