Description

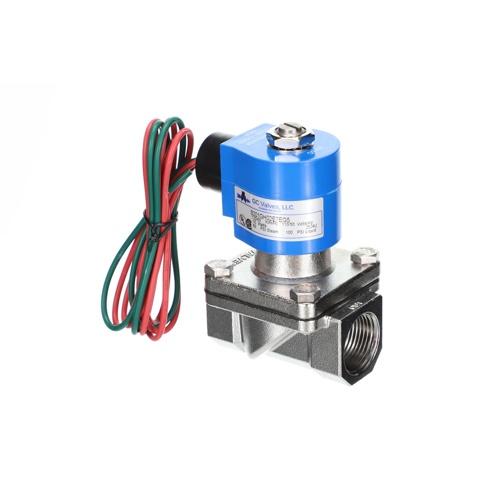

GC Valves S201GH02N5EG5 Overview
The GC Valves S201GH02N5EG5 is a 3/4″ normally closed (N/C) solenoid valve engineered for dependable on/off fluid control in commercial and industrial HVAC applications. Rated for both air and water service with a broad pressure range of 0 to 140 PSI and a 120V coil voltage, this valve delivers consistent, repeatable shutoff performance across a wide range of system configurations.
Key Features
- 3/4″ pipe connection for straightforward installation into standard plumbing and HVAC piping systems
- Normally closed (N/C) operation — valve closes automatically when de-energized for fail-safe system protection
- 120V AC coil voltage compatible with standard commercial control circuits
- Operating pressure range: 0–140 PSI, suitable for low- and medium-pressure air and water systems
- Dual-media rated for air and water service, providing versatile application flexibility
- Robust construction designed for long service life in demanding HVAC and building automation environments
Specifications
- Brand: GC Valves
- SKU / Part Number: S201GH02N5EG5
- Connection Size: 3/4″
- Valve Action: Normally Closed (N/C)
- Coil Voltage: 120V AC
- Pressure Range: 0–140 PSI
- Media: Air / Water
Applications
- HVAC water supply and return line shutoff
- Compressed air system control
- Building automation and BAS-controlled fluid circuits
- Commercial hydronic heating and cooling systems
- Industrial process air and water control
