Description

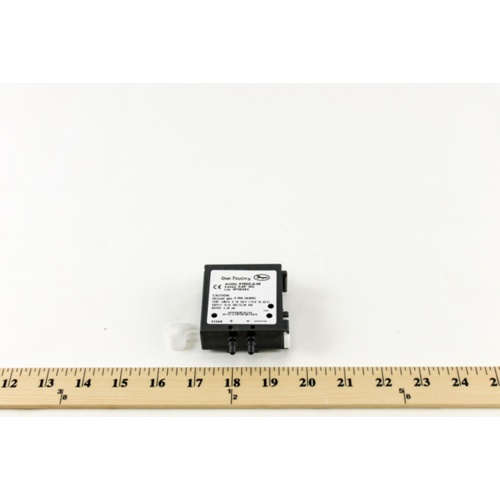

Dwyer 616KD-A-08 Differential Pressure Transmitter Overview
The Dwyer 616KD-A-08 is a high-accuracy differential pressure transmitter engineered for demanding HVAC and building automation applications. Designed for use with air and non-combustible gases, this transmitter delivers reliable, repeatable pressure measurement across a 0 to 40″ w.c. range — making it well suited for duct static pressure monitoring, filter status, fan differential, and clean room applications.
Key Features
- Measurement range: 0 to 40″ w.c. (inches water column)
- Accuracy: 0.25% Full Scale — exceptional precision for critical pressure monitoring
- One-touch digital push button zero and span calibration for fast, tool-free field setup
- Standard 4-20mA output signal for long-distance transmission and BAS integration
- Field-selectable voltage output options: 0-10V, 0-5V, 2-10V, and 1-5V — no rewiring required
- Compatible with air and non-combustible gases
- Compact, panel-ready enclosure suitable for wall or duct mounting
Output Signal Options
- 4-20mA (standard)
- 0-10V DC (field selectable)
- 0-5V DC (field selectable)
- 2-10V DC (field selectable)
- 1-5V DC (field selectable)
Ideal Applications
- HVAC duct static pressure control
- Air filter differential pressure monitoring
- Fan and blower performance verification
- Clean room and laboratory pressure monitoring
- Building automation and energy management systems
Why Choose the Dwyer 616KD-A-08?
With its 0.25% full scale accuracy and versatile field-selectable output options, the Dwyer 616KD-A-08 eliminates the need for multiple transmitter SKUs across different control system requirements. The one-touch push button calibration reduces commissioning time and simplifies field adjustments, while the robust design ensures long-term stability in commercial and industrial HVAC environments.
